Construction Features

Stainless Steel &
Powder Coated

Welded Corner

Welded Corner

Corners of panels, pilasters, and doors are welded to each other and to the adjacent face sheets.

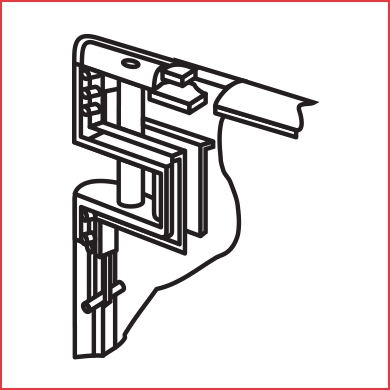

Upper Door Hinge

Internal part of the door. A pin goes through door and bracket for three-point bearing and operates in a nylon bushing in upper hinge bracket.

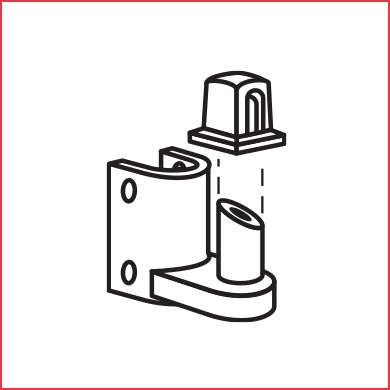

Bottom Door Hinge

Gravity-positioning hinge provides safe, durable, and maintenance free support.

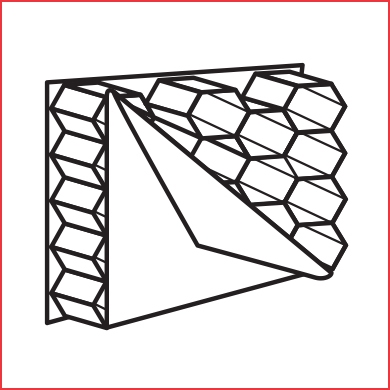

Honeycomb Core

Made of cellular honeycomb. This type of core provides strong construction and sound attenuation.

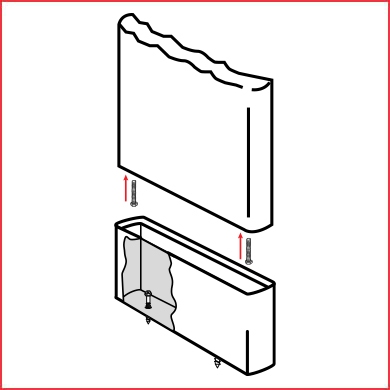

Easy-Stall™ Shoe

Type 304 Stainless Steel Easy-Stall™ Shoe simplifies installation and leveling adjustments.

Vandal-Resistant Fasteners

Special driver installs fasteners which virtually eliminates unauthorized removal and ensures easy installation.
No-Sight System

Integrated Privacy™ No-Sight System

Integrated Privacy™ Partitions feature Zero Sightline Components to conceal compartment. Now all Stainless and Powder Coated Steel partitions come standard with ASI's new Integrated Privacy™ System.

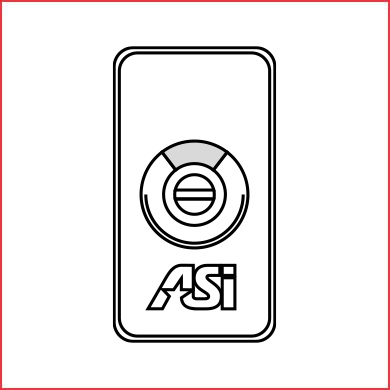

Our New Standard Occupancy Indicator

Our partition doors are factory drilled simplifying the installation of the occupancy indicator.

Moisture Guard™
Plastic Laminate

Vandal-Resistant Fasteners

Special driver installs fasteners which virtually eliminates unauthorized removal and ensures easy installation.

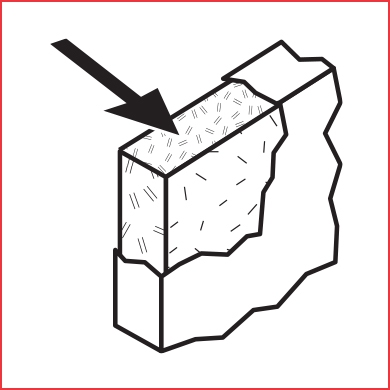

Core

Particle board core is 45# density to resist warping and ensure a smooth surface.

Emergency Access

Meets ADA requirements. Slotted keeper coupled with gravity hinges allows access in an emergency.

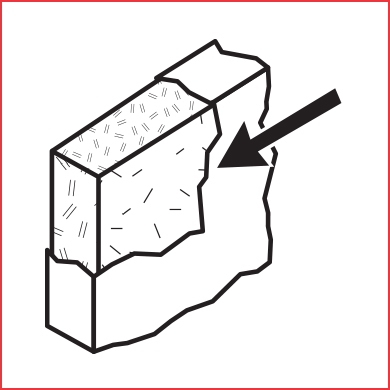

Vertical-Grade Laminate

The 0.050" thickness meets the most demanding partition specification.

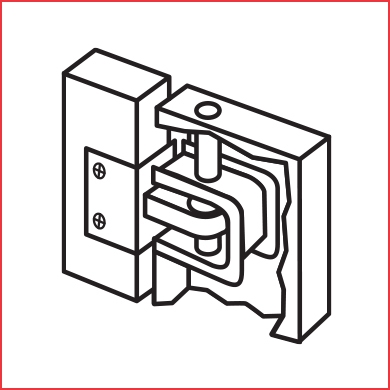

Door Hinges

Wrap-around mounting and through bolting for vandal resistance.

Easy-Stall Shoe

For floor anchored overhead braced.

Easily adjusted leveling bolt.

True concrete anchor screws designed for lasting holding power.

Anchor rated at 2770 lbs. pullout strength.

Fabricated of type 304 stainless steel.

Solid
Plastic (HDPE)

Vandal-Resistant Fasteners

Special driver installs fasteners which virtually eliminates unauthorized removal and ensures easy installation.

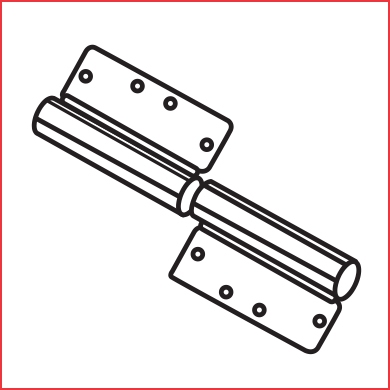

8″ Aluminum Wrap-Around Hinge

Mainstream choice.

Heavy-duty.

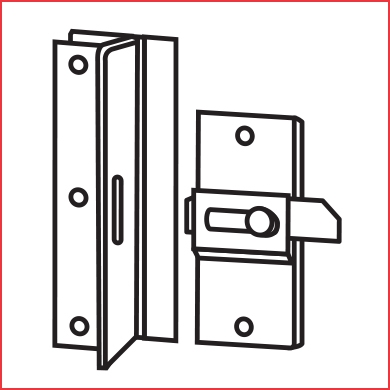

6″ Aluminum Strike

Industry-standard wrap-around
strike-keeper.

Easy-Stall Shoe

For floor anchored overhead braced.

Easily adjusted leveling bolt.

True concrete anchor screws designed for lasting holding power.

Anchor rated at 2770 lbs. pullout strength.

Fabricated of type 304 stainless steel.

Phenolic

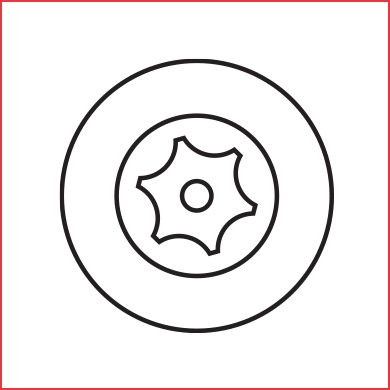

Vandal-Resistant Fasteners

Special driver installs fasteners which virtually eliminates unauthorized removal and ensures easy installation.

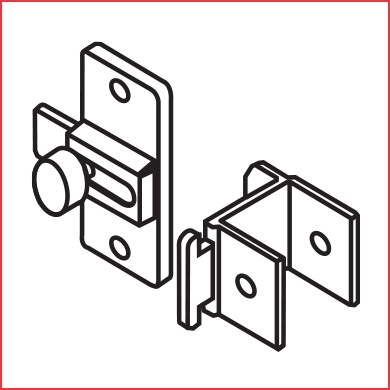

Emergency Access

Meets ADA requirements. Slotted keeper coupled with gravity hinges allows access in an emergency.

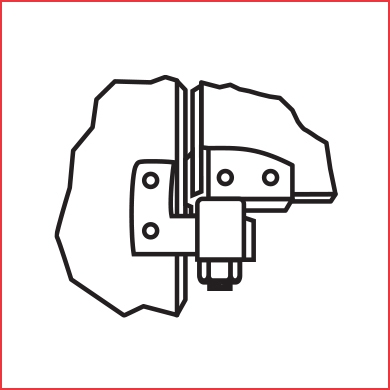

Vault Hinge

Rugged, attractive wrap-around hinge. Extra strong for heavy-duty installations.

Easy-Stall Shoe

For floor anchored overhead braced.

Easily adjusted leveling bolt.

True concrete anchor screws designed for lasting holding power.

Anchor rated at 2770 lbs. pullout strength.

Fabricated of type 304 stainless steel.

Ultimate Privacy™

No-Sight System

Ultimate Privacy™ No-Sight System

Continuous stop and hinge side filler eliminate sightlines into the compartment.

Applicable to Powder Coated and Stainless Steel partitions.

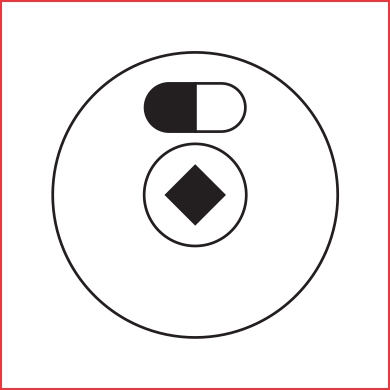

Occupancy Indicator

Occupancy Indicator

Occupancy latch with an emergency access capability indicates when stall is occupied.

Applicable to Phenolic partitions.

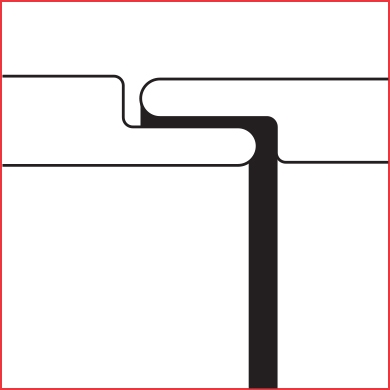

Flush Finish Self Closing Doors

Flush Finish Self-Closing Doors

All of our self-closing doors and pilasters meet in a flush finish with routed, overlapping closures for guaranteed privacy.

Applicable to Phenolic and Solid Plastic partitions.

Easy-Stall Shoe

For floor anchored overhead braced.

Easily adjusted leveling bolt.

True concrete anchor screws designed for lasting holding power.

Anchor rated at 2770 lbs. pullout strength.

Fabricated of type 304 stainless steel.
