Integrated Privacy™
Stainless Steel

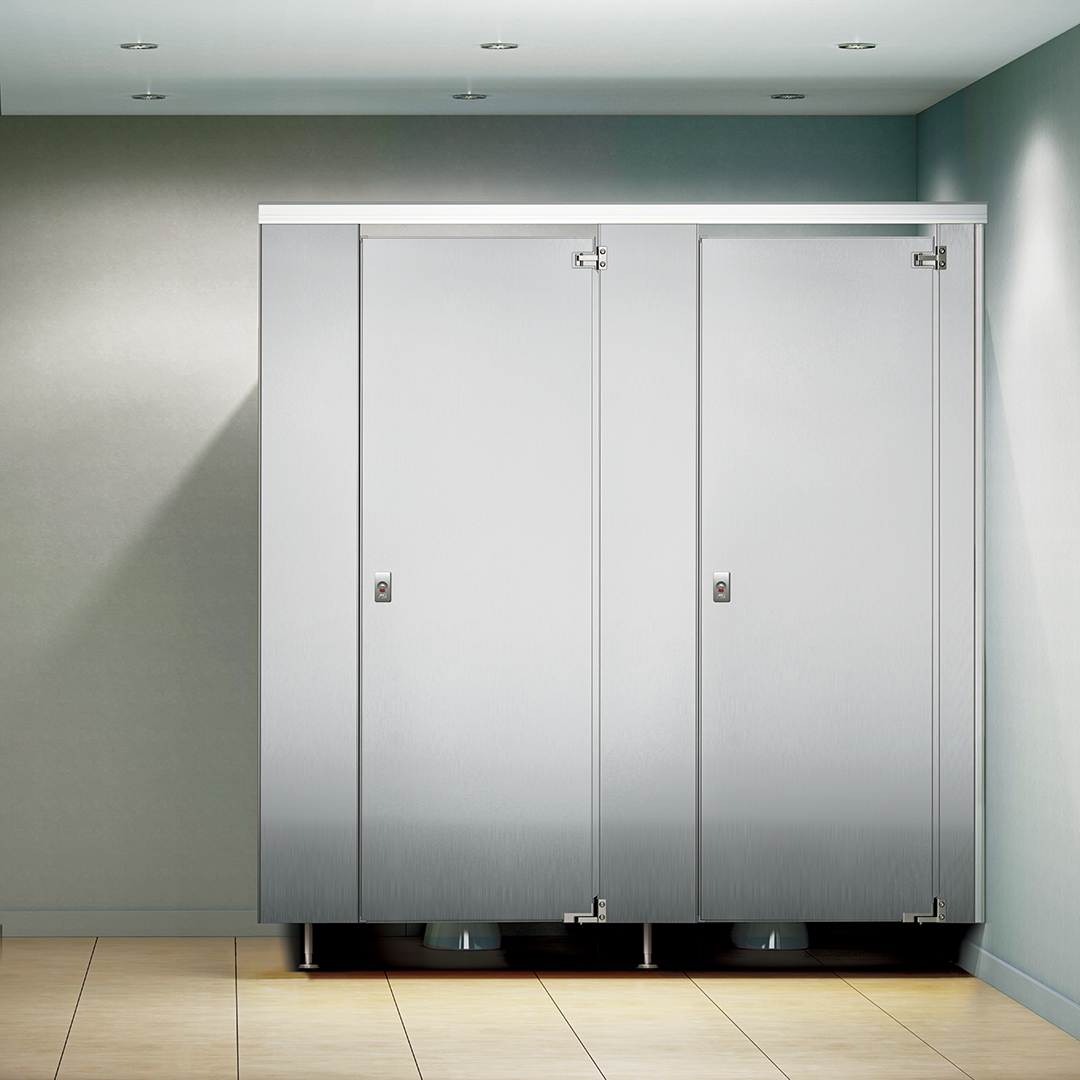

ASI’s stainless steel metal partitions are manufactured with Integrated Privacy™ and complement any design scheme. By adding a textured finish, increased resistance to vandalism can be achieved. Available in all four mounting styles with stainless steel hardware.
Options:
- Stainless Steel Stirrup Brackets
- Wood Core
- Continuous Anodized Aluminum and Stainless Steel Brackets
See what makes our proprietary Integrated Privacy™ System unique.

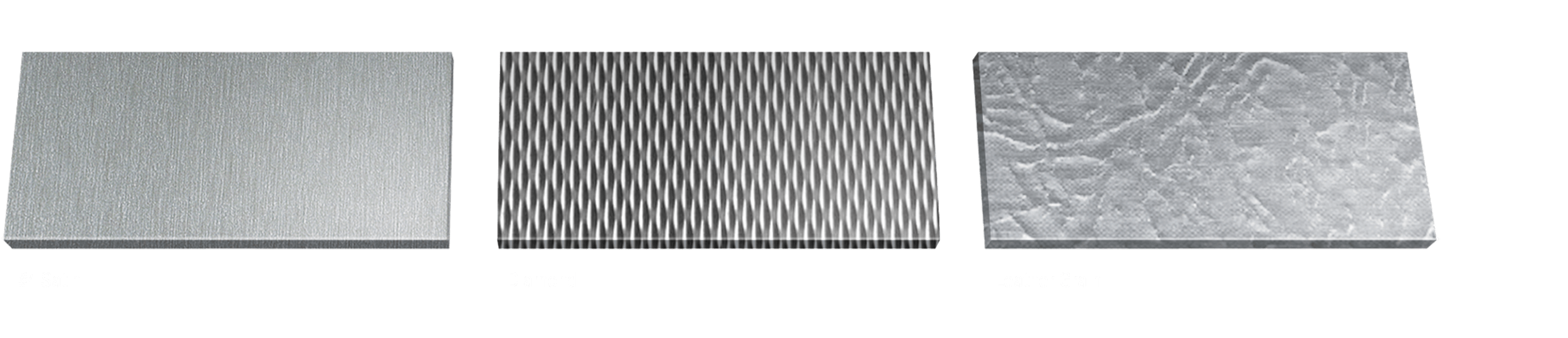

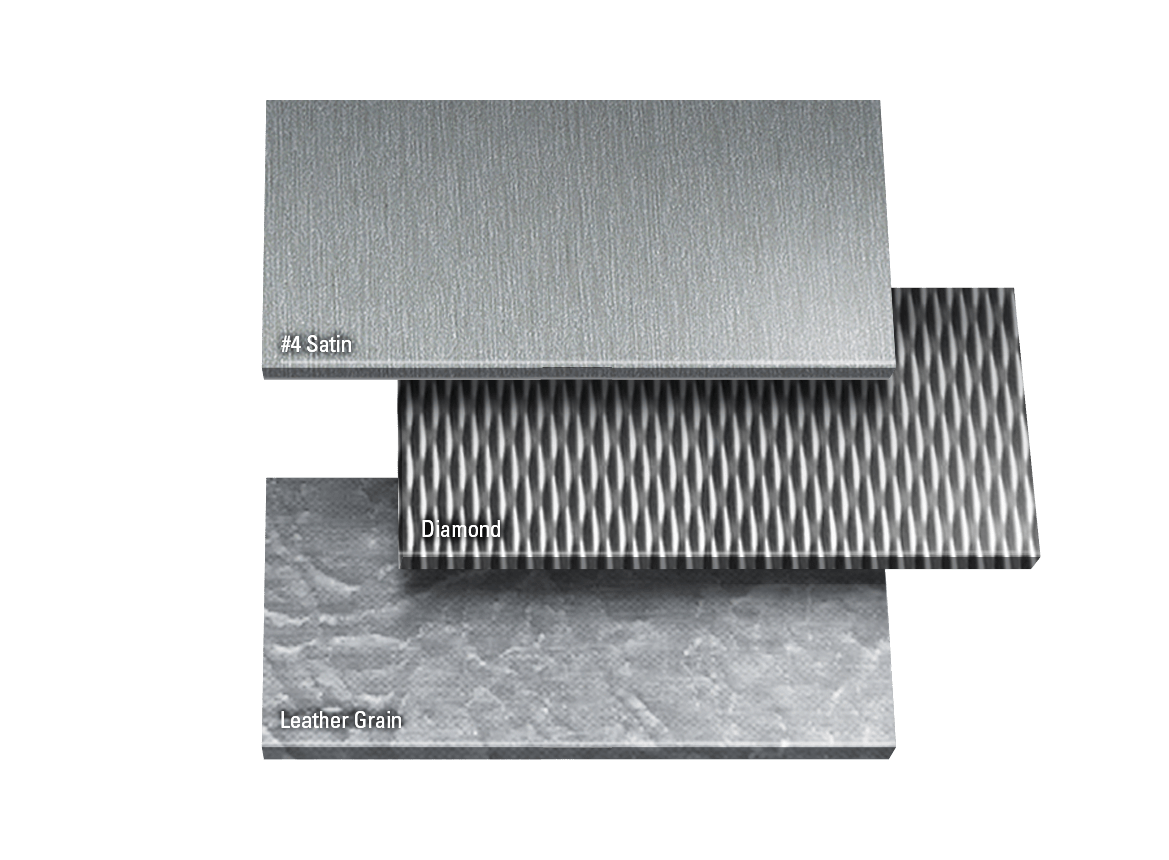

Available Finishes
Fabricated of type 304 stainless steel.
Due to variances among color monitors the colors that appear on your screen may not be exact.
If color is important you must request samples prior to ordering.
Colors are subject to change without notice.
Styles

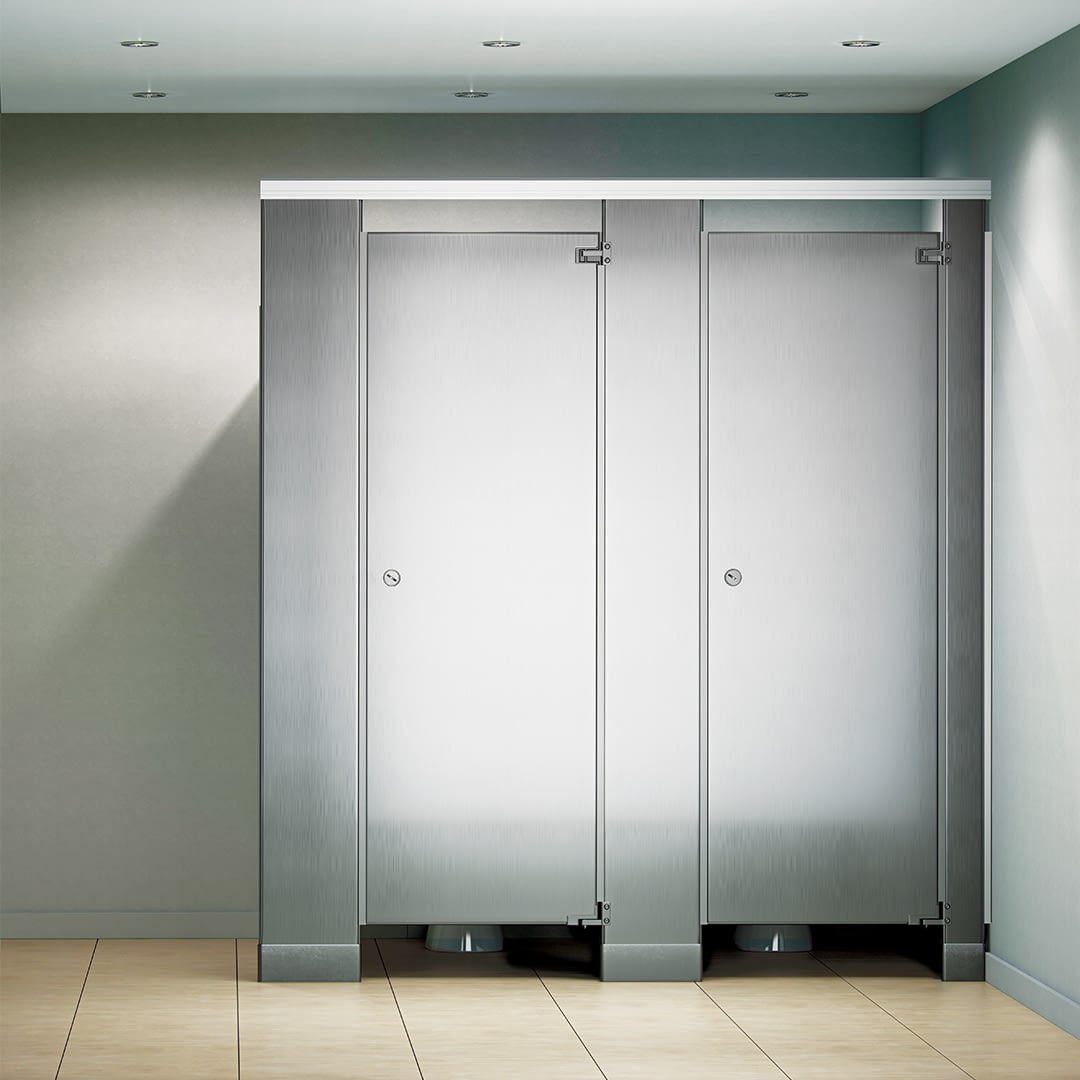

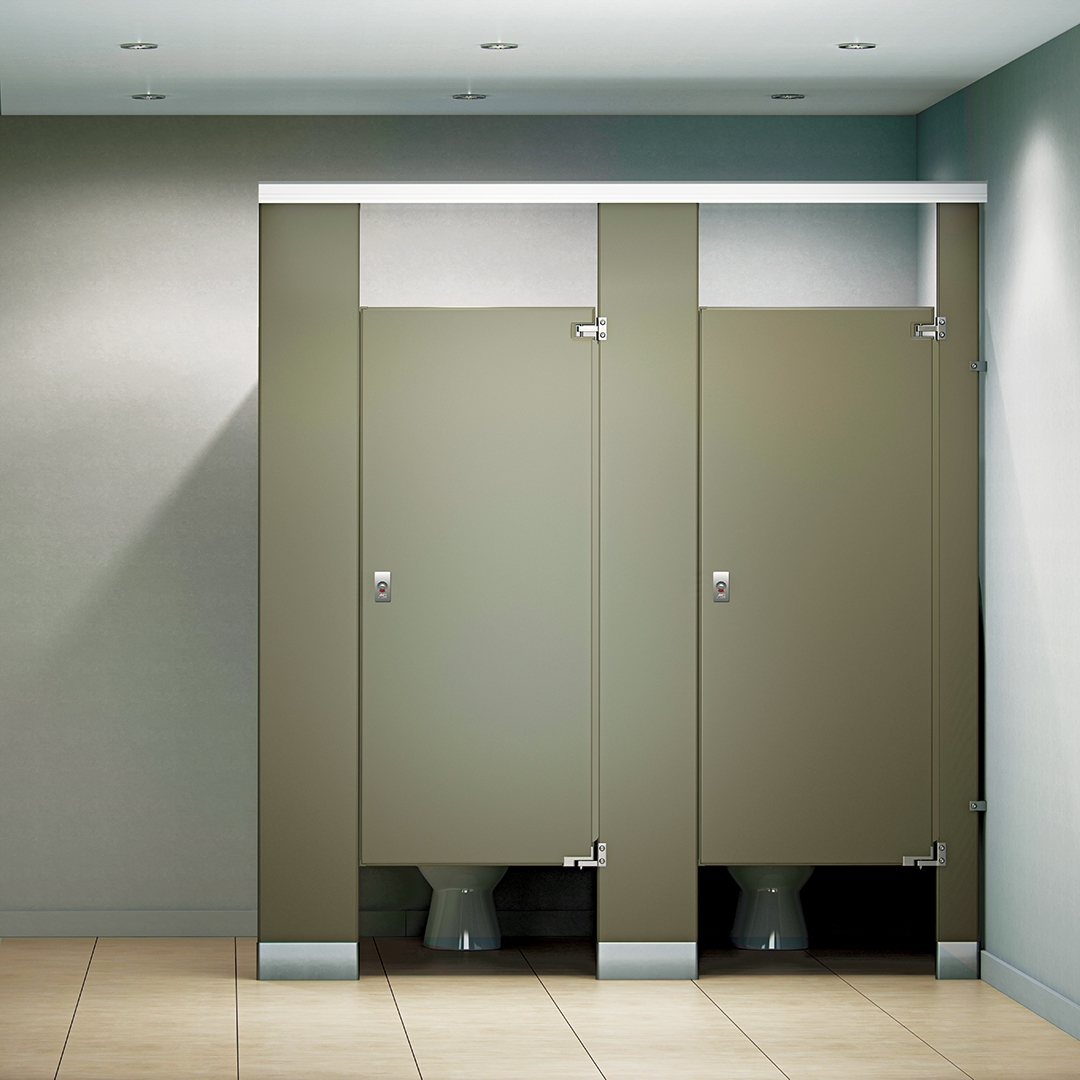

Floor Anchored/Overhead Braced
This economical and sturdy mounting style installs just about anywhere. An anodized aluminum anti-grip head rail secures partitions firmly to the walls.

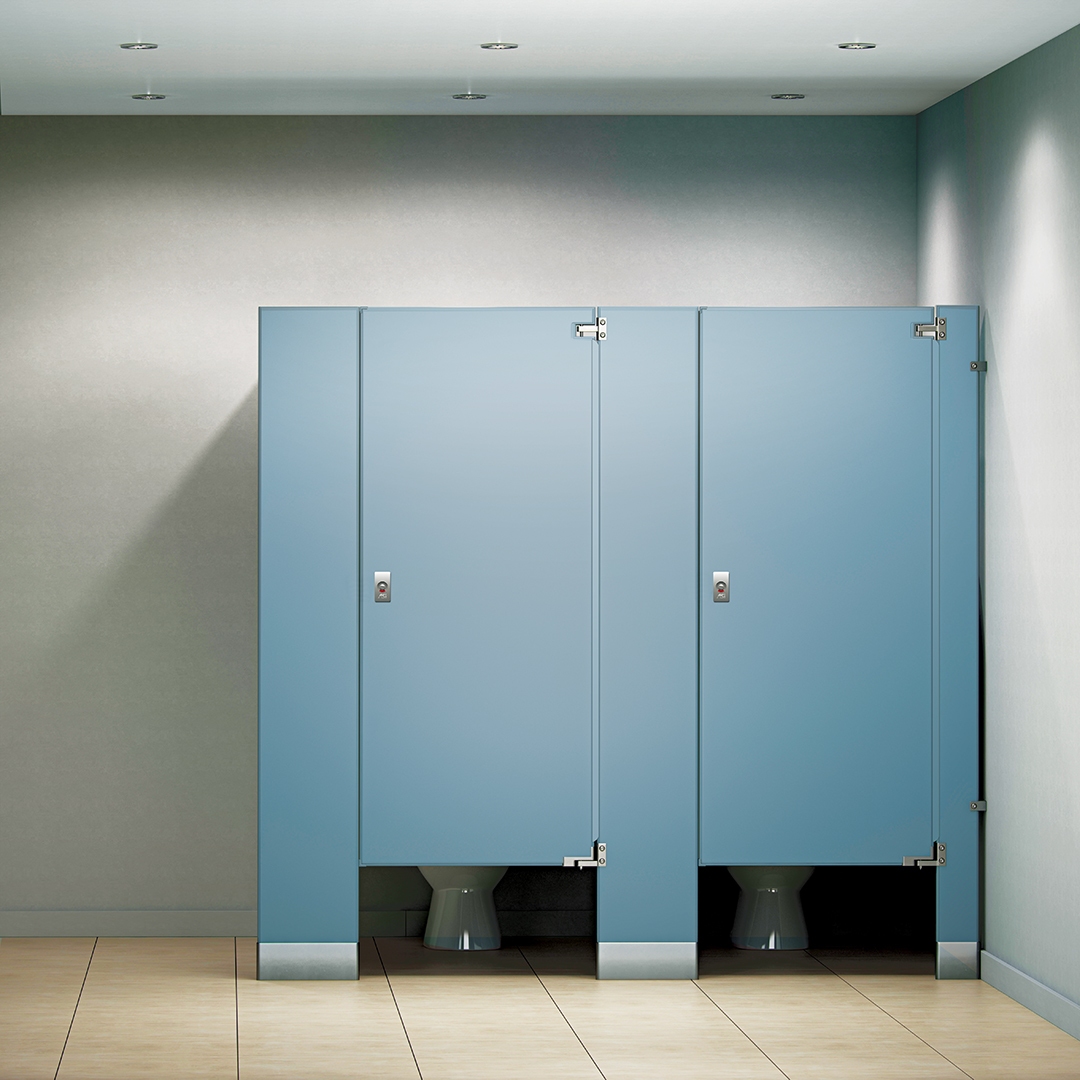

FloorAnchored
Simplified construction permits ease of installation anywhere. For concrete floors only: 2" minimum penetration into floor required.

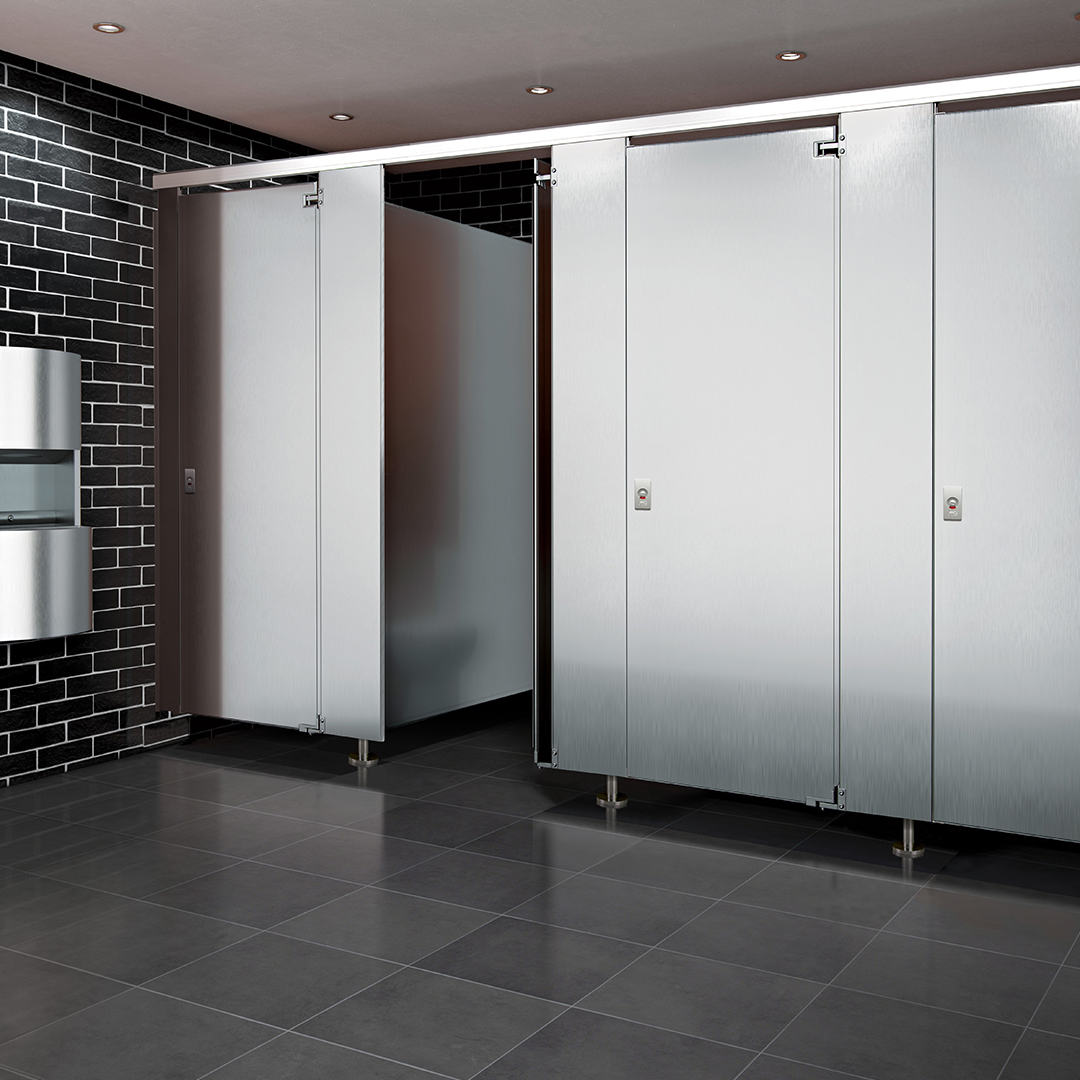

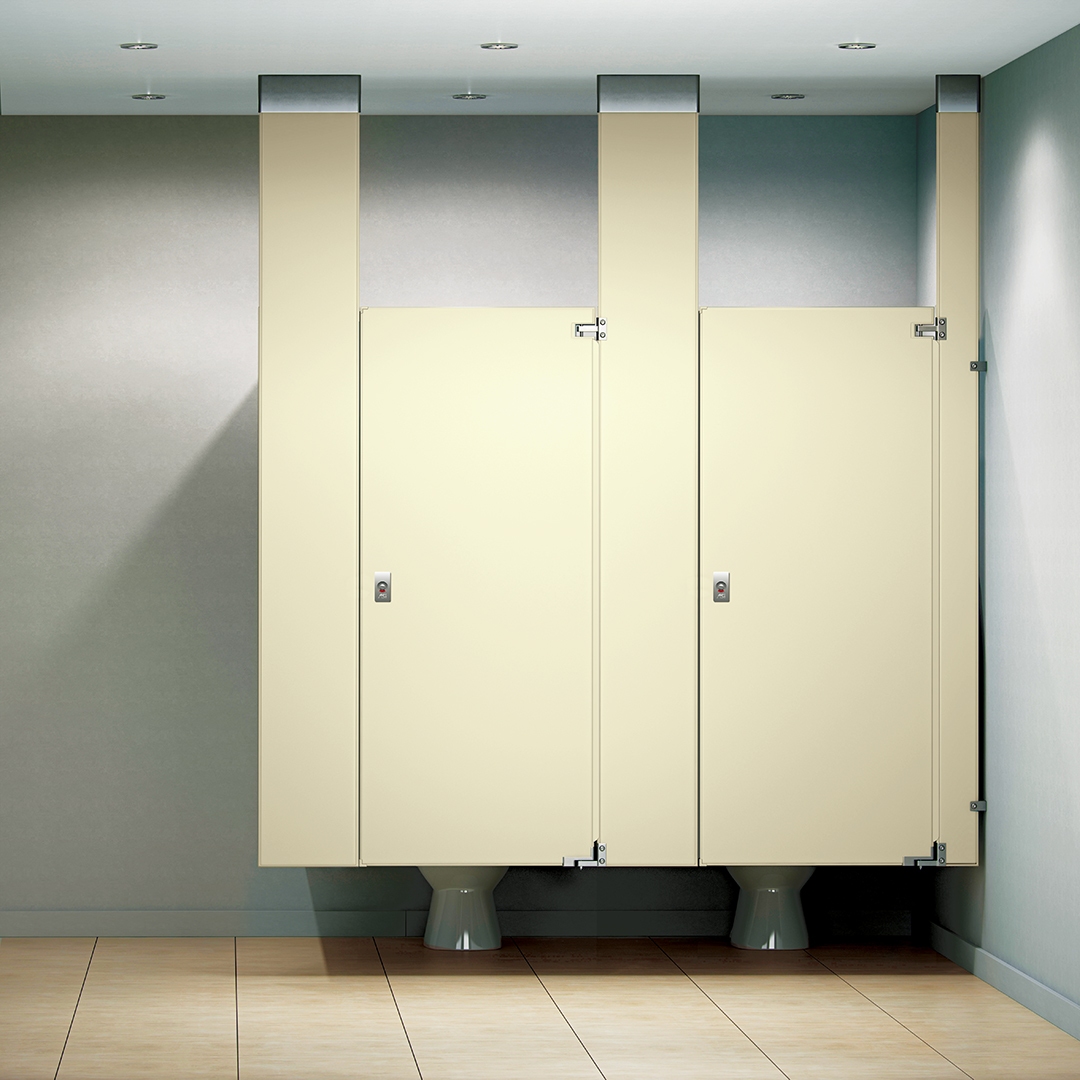

CeilingHung
When used together with wall-hung fixtures, the entire floor is accessible for efficient cleaning. Structural steel ceiling supports are necessary to assure proper installation.

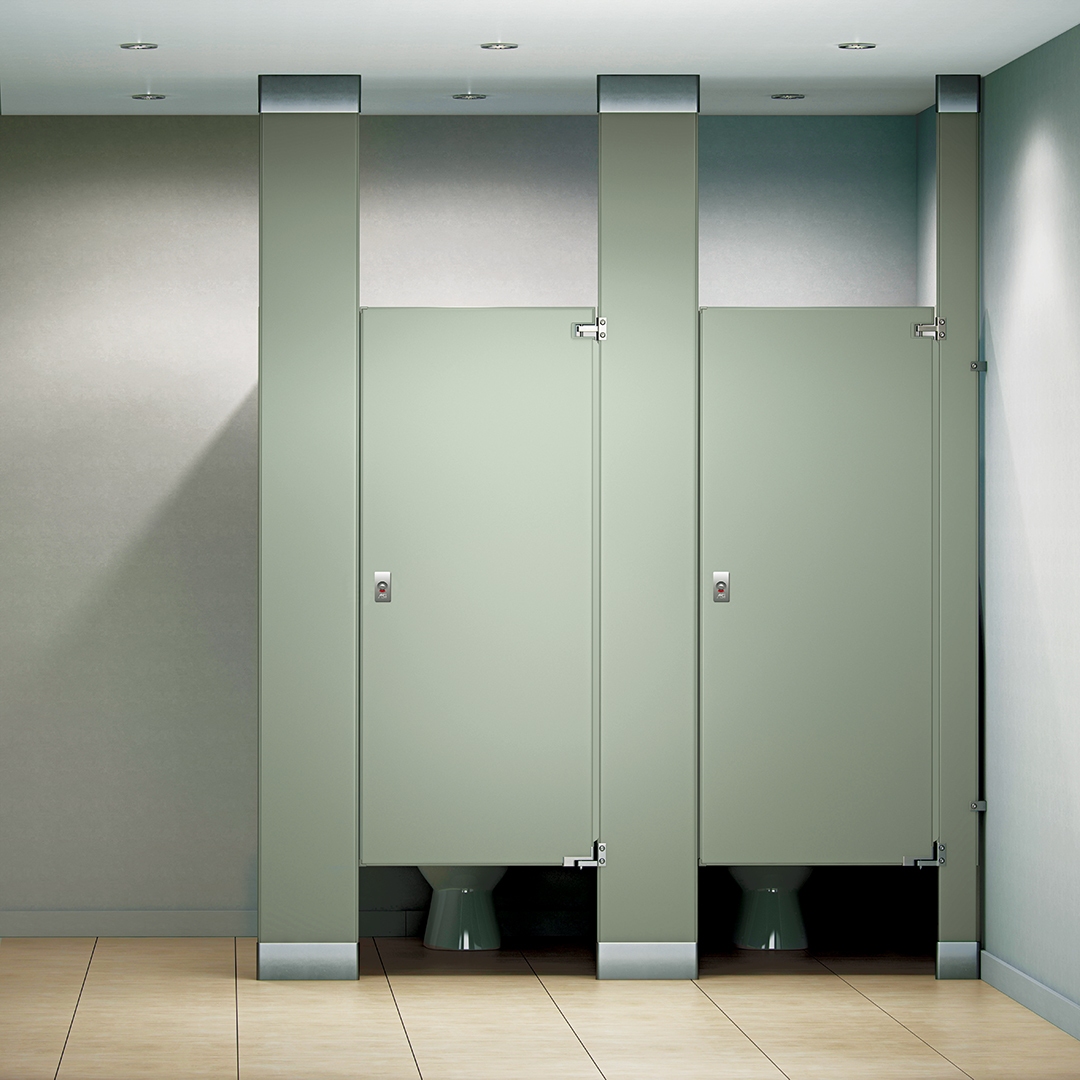

Floor to CeilingAnchored
This mounting style is extremely stable and durable as pilasters are anchored into both the concrete floor and the structural ceiling support.
IntegratedPrivacy™
We have elevated the standard for privacy in metal partitions. Integrated Privacy™ Partitions are engineered with built-in privacy and manufactured as one color matched unit. The result? Superior aesthetics and complete privacy without the need for any retrofitted components.Hardware

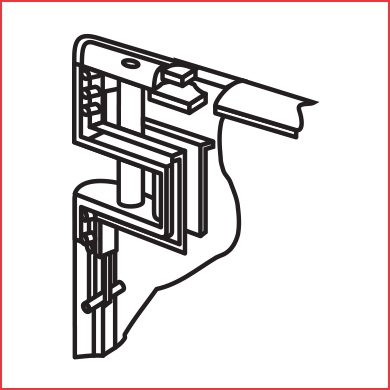

Upper Door Hinge
Internal part of the door. A pin goes through door and bracket for three-point bearing and operates in a nylon bushing in upper hinge bracket.

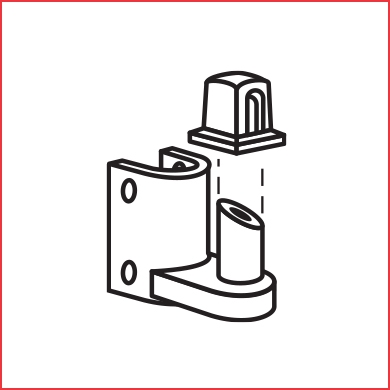

Bottom Door Hinge
Gravity-positioning hinge provides safe, durable, and maintenance free support.

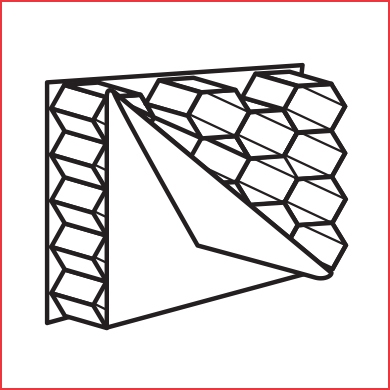

Honeycomb Core
Made of cellular honeycomb. This type of core provides strong construction and sound attenuation.

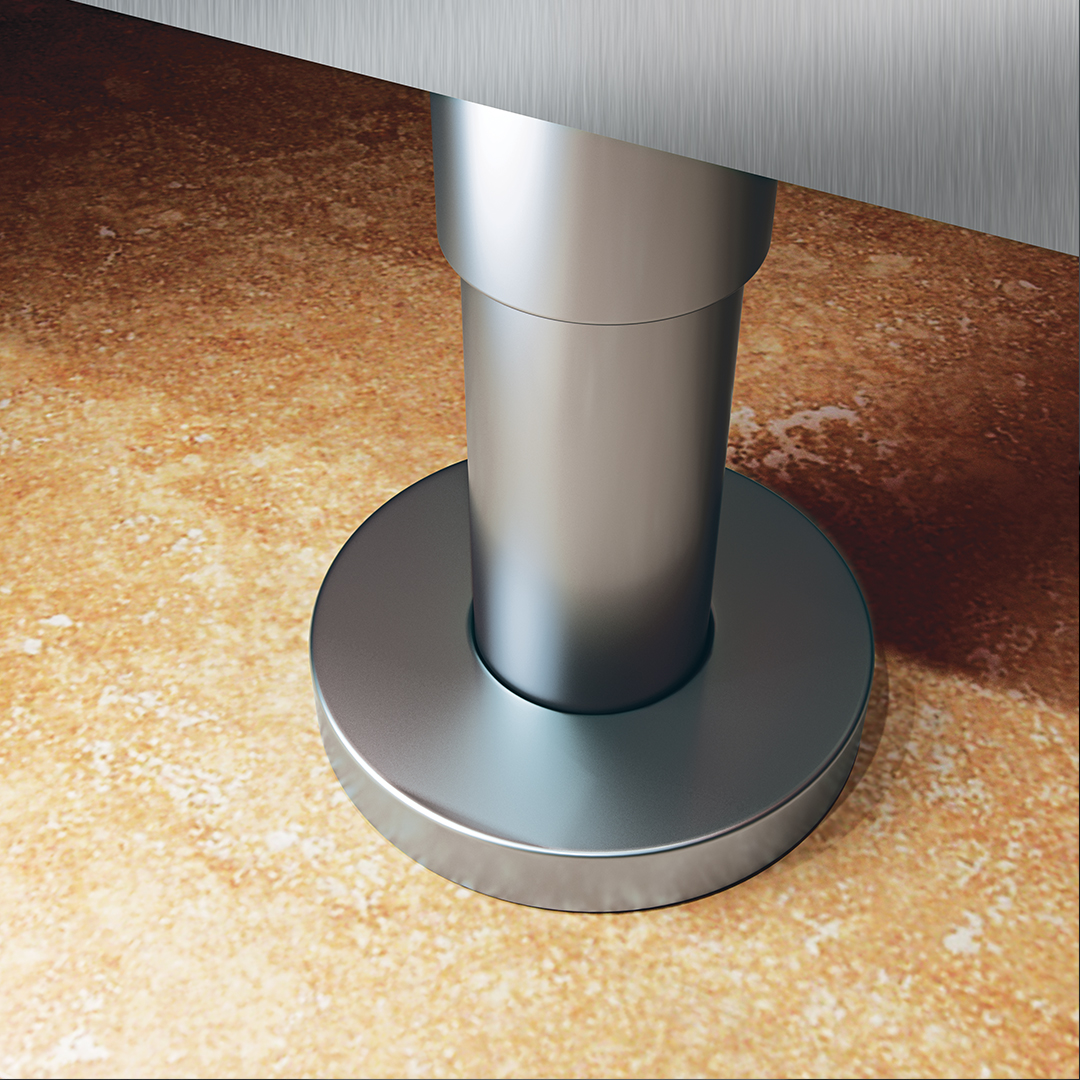

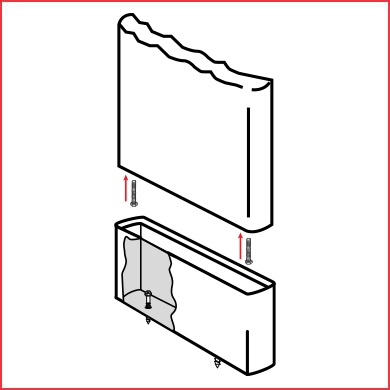

Easy-Stall™ Shoe
Type 304 Stainless Steel Easy-Stall™ Shoe simplifies installation and leveling adjustments.

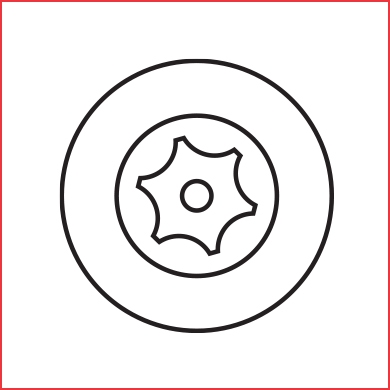

Vandal-Resistant Fasteners
Special driver installs fasteners which virtually eliminates unauthorized removal and ensures easy installation.

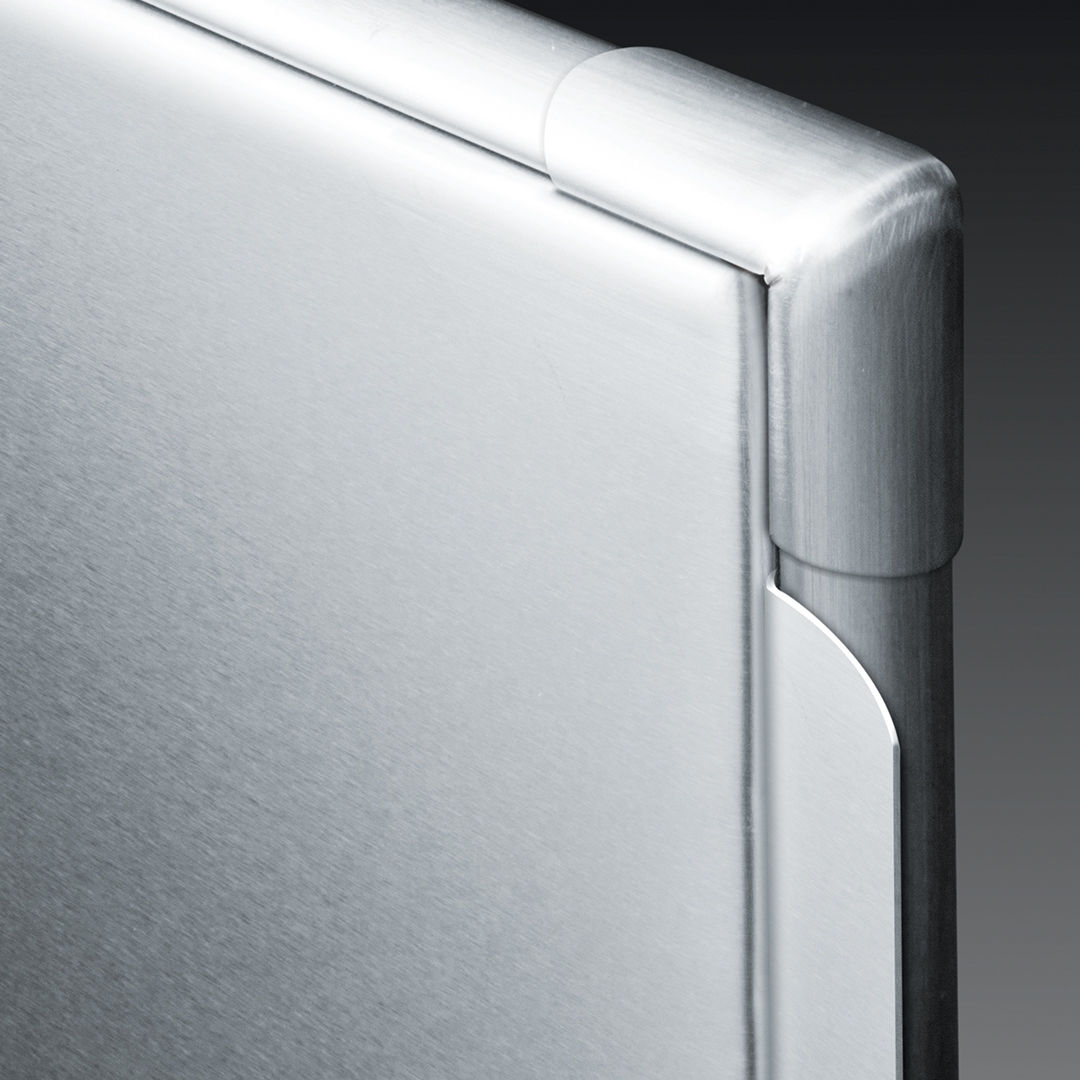

Integrated Privacy™ No-Sight System
Integrated Privacy™ Partitions feature Zero Sightline Components to conceal compartment. Now all Stainless and Powder Coated Steel partitions come standard with ASI’s new Integrated Privacy™ System.

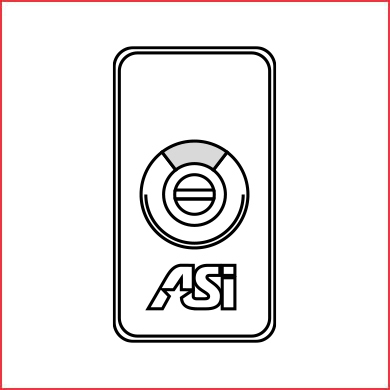

Our New Standard Occupancy Indicator
Our partition doors are factory drilled simplifying the installation of the occupancy indicator.
Features
Staked Piano
Hinges
Our heavy-duty, staked piano hinges provide security and a neat appearance, and they stand up to heavy use.
