Replacement Hardware

Panels

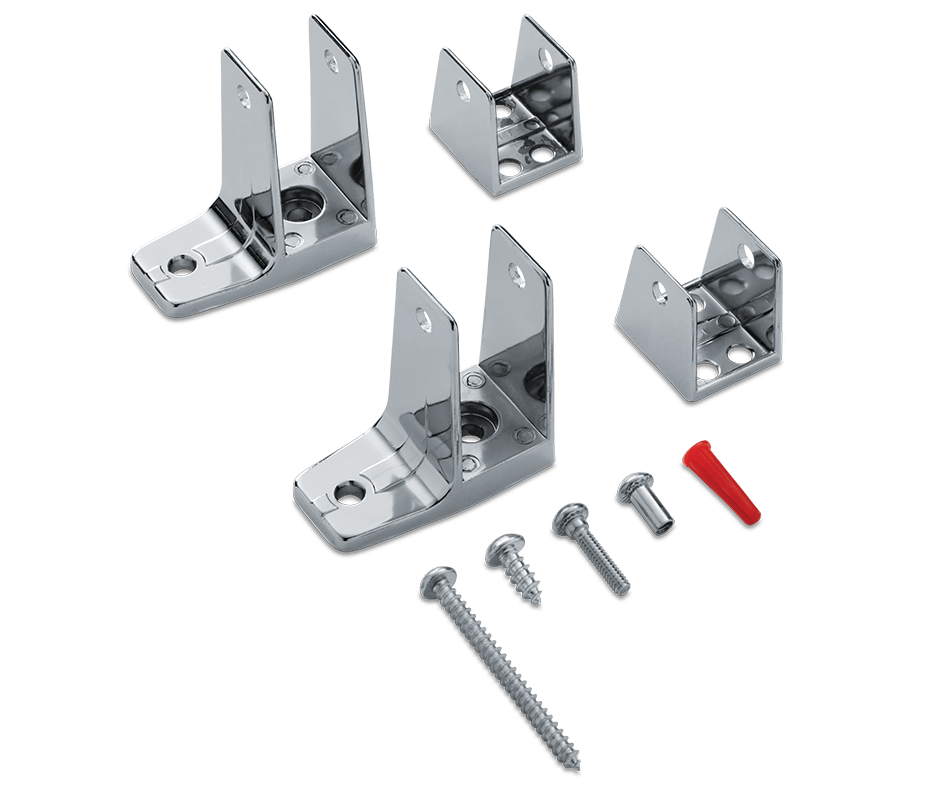

Zamac One Ear Panel to Wall and Pilaster Set for Powder Coated, Stainless Steel or Plastic Laminate

Qty Description
(2) Zamac brackets one ear
(2) Zamac "U" brackets
(4) Screws #14 x 2-1/2"
(4) Plastic shields 14/16 x 1-1/2"
(12) Screws #14 x 5/8"
(4) Step bolts #10-24 x 1"
(4) Barrel nuts #10 x 5/8"

Metal Part #40-8515030
Plastic Laminate Part #40-8515010

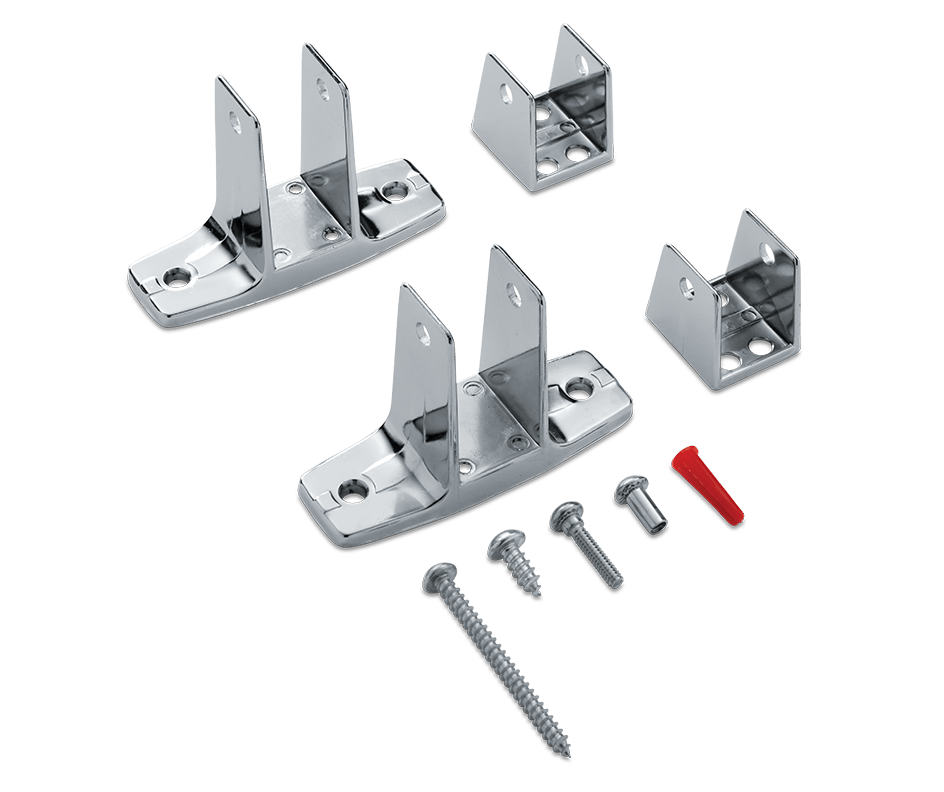

Zamac Two Ear Panel to Wall and Pilaster Set for Powder Coated, Stainless Steel or Plastic Laminate

Qty Description
(2) Zamac brackets two ear
(2) Zamac "U" brackets
(4) Screws #14 x 2-1/2"
(4) Plastic shields 14/16 x 1-1/2
(12) Screws #14 x 5/8"
(4) Step bolts #10-24 x 1"
(4) Barrel nuts #10 x 5/8"

Metal Part #40-8515040
Plastic Laminate Part #40-8515020

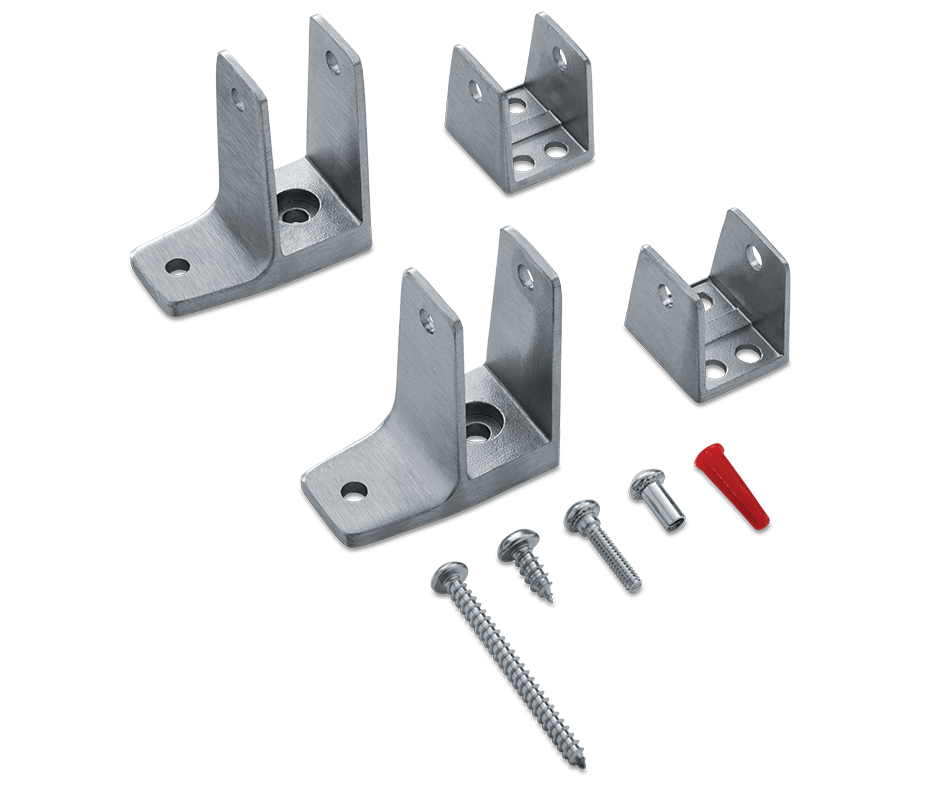

Stainless Steel One Ear Panel to Wall and Pilaster Set for Phenolic

Qty Description
(2) Stainless steel brackets one ear
(2) Stainless steel "U" brackets
(4) Screws #14 x 2-1/2"
(4) Plastic shields 14/16 x 1-1/2"
(4) Screws #14 x 3/4"
(4) Step bolts 1/2"
(4) Barrel nuts #10 - 24 x 3/8"

Part #40-8275010

Doors

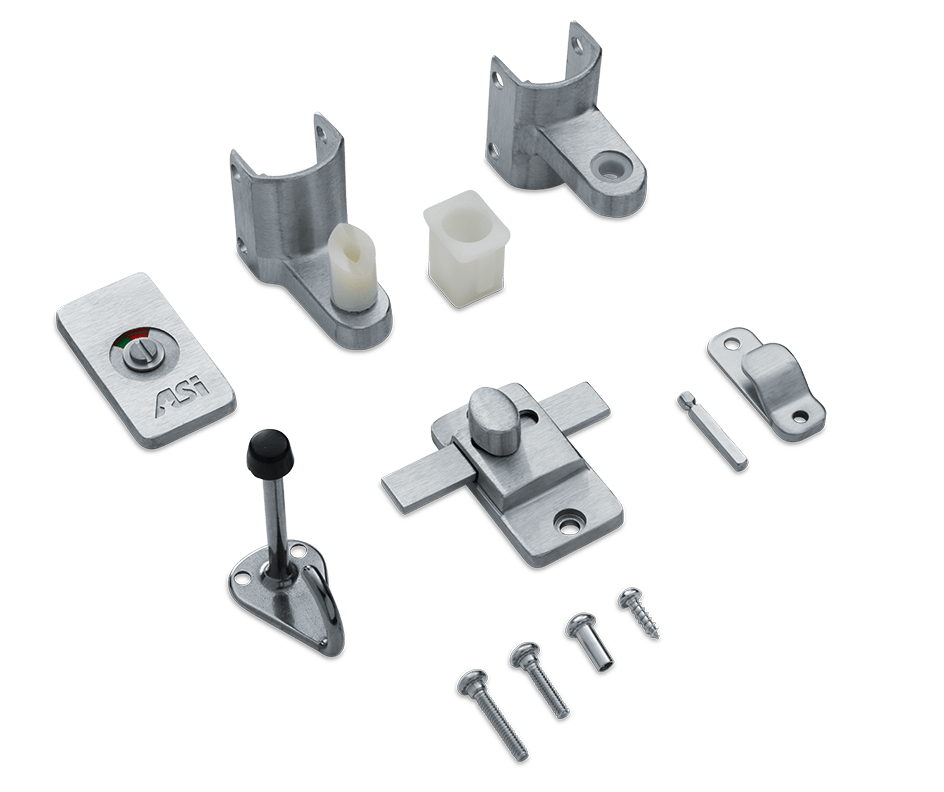

Stainless Steel Inswing No-Sight Slide Latch Door Kit

Qty Description
(1) No-Sight Latch Indicator
(1) No-Sight Keeper
(1) Bottom Hinge
(1) Indicator Drive Pin
(1) Bottom Hinge
(1) Box Cam
(1) 5/16" Nut
(1) External Tooth Washer
(1) Internal Tooth Washer
(1) Nylon Pintel
(1) Slide Latch
(1) Stainless Steel Pin
(4) 1.25" Step Bolts
(2) 1" Step Bolts
(8) 5/8" Step Nuts
(4) 5/8" Screws
(1) Coat Hook

Part #40-8513500G

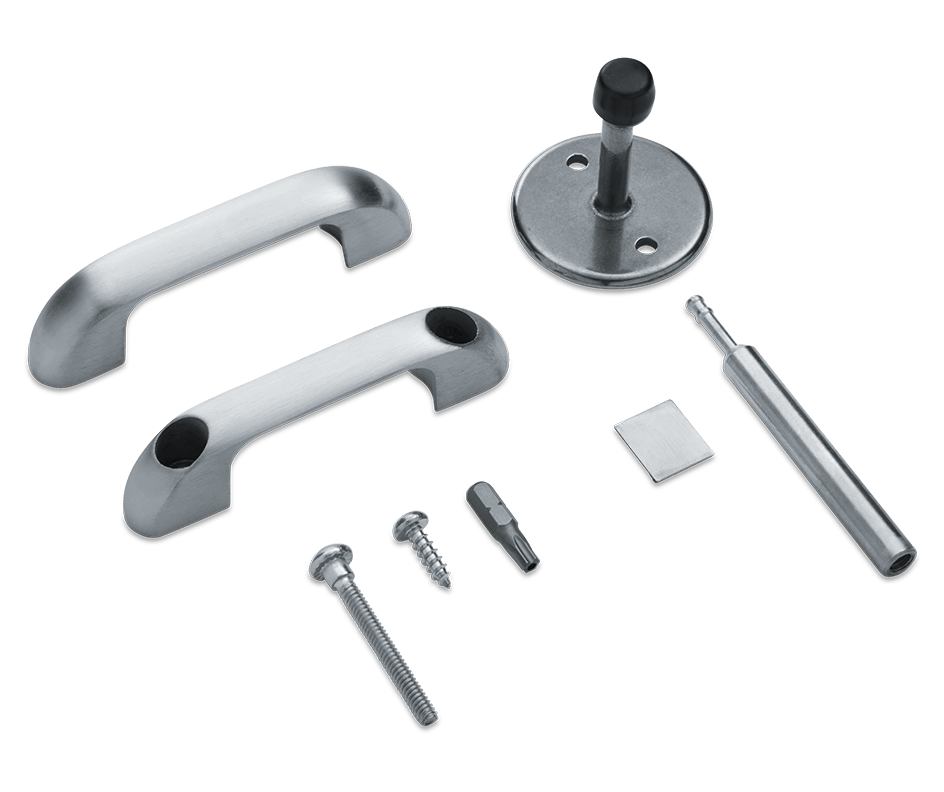

Stainless Steel Outswing Adder Door Kit

Qty Description
(2) Stainless Steel Door Pulls
(2) 1.5" Step Bolts
(1) Outswing Bumper
(2) 5/8" Screws
(1) Pintorx Bit
(1) Stainless Steel Pin

Part #40-8513510G

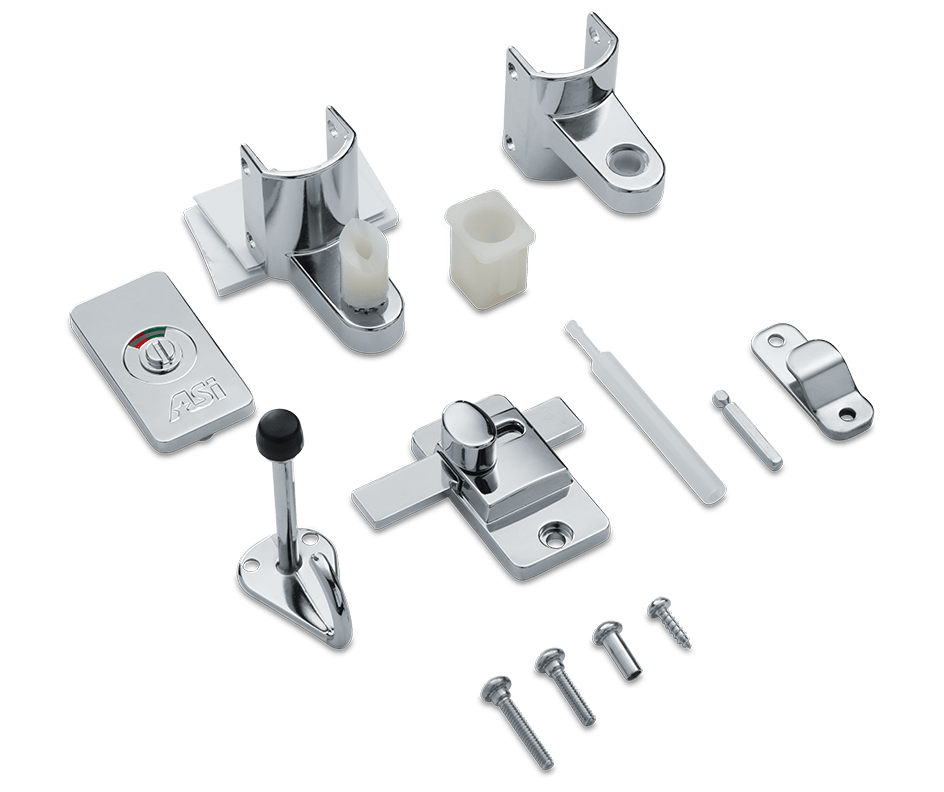

Chrome Plated Zamac Inswing No-Sight Slide Latch Door Kit

Qty Description
(1) No-Sight Latch Indicator
(1) No-Sight Keeper
(1) Bottom Hinge
(1) Indicator Drive Pin
(1) Bottom Hinge
(1) Box Cam
(1) 5/16" Nut
(1) External Tooth Washer
(1) Internal Tooth Washer
(1) Nylon Pintel
(1) Slide Latch
(1) Nylon Pin
(4) 1.25" Step Bolts
(2) 1" Step Bolts
(8) 5/8" Step Nuts
(4) 5/8" Screws
(1) Coat Hook

Part #40-8511530G

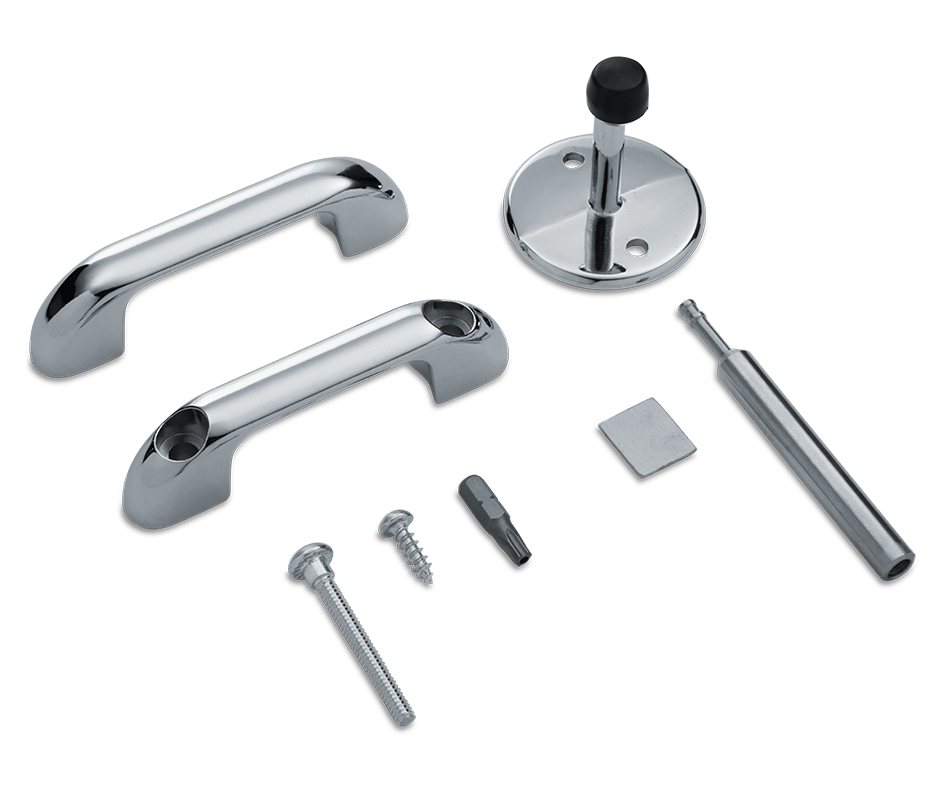

Chrome Plated Zamac Outswing Adder Door Kit

Qty Description
(2) Chrome Plated Door Pulls
(2) 1.5" Step Bolts
(1) Outswing Bumper
(2) 5/8" Screws
(1) Pintorx Bit
(1) Stainless Steel Pin

Part #40-85263100G

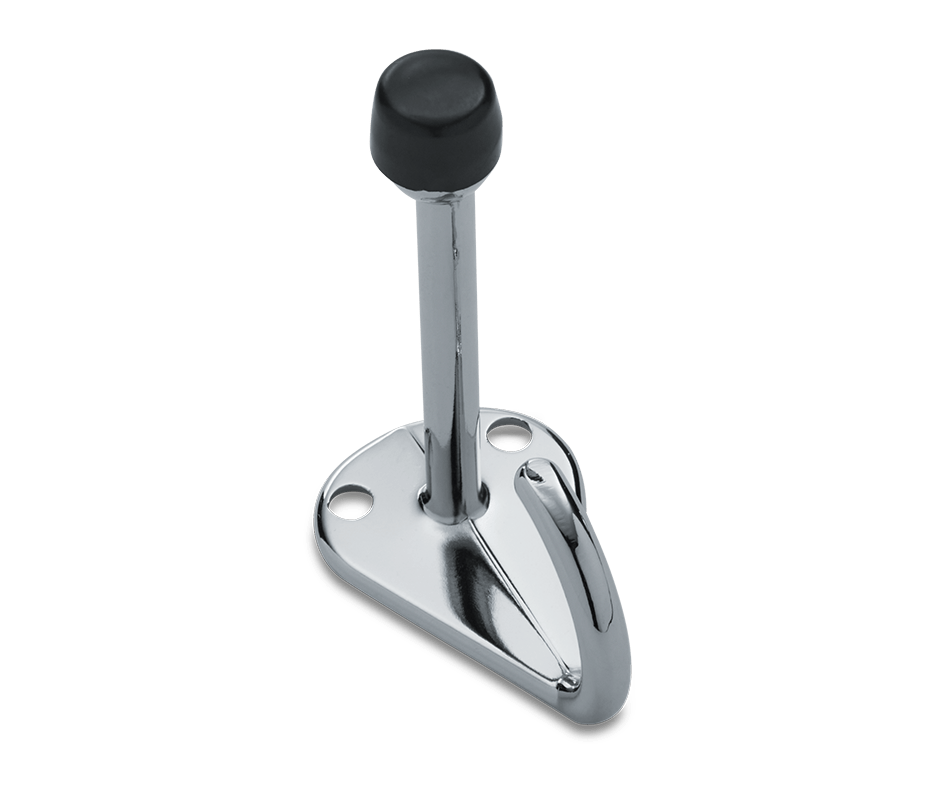

Zamac Bumper & Coat Hook for Powder Coated & Stainless Steel

Qty Description
(1) Bumper & coat hook
(2) Screws #10 x 5/8"

Part #40-8511600G

Pilasters

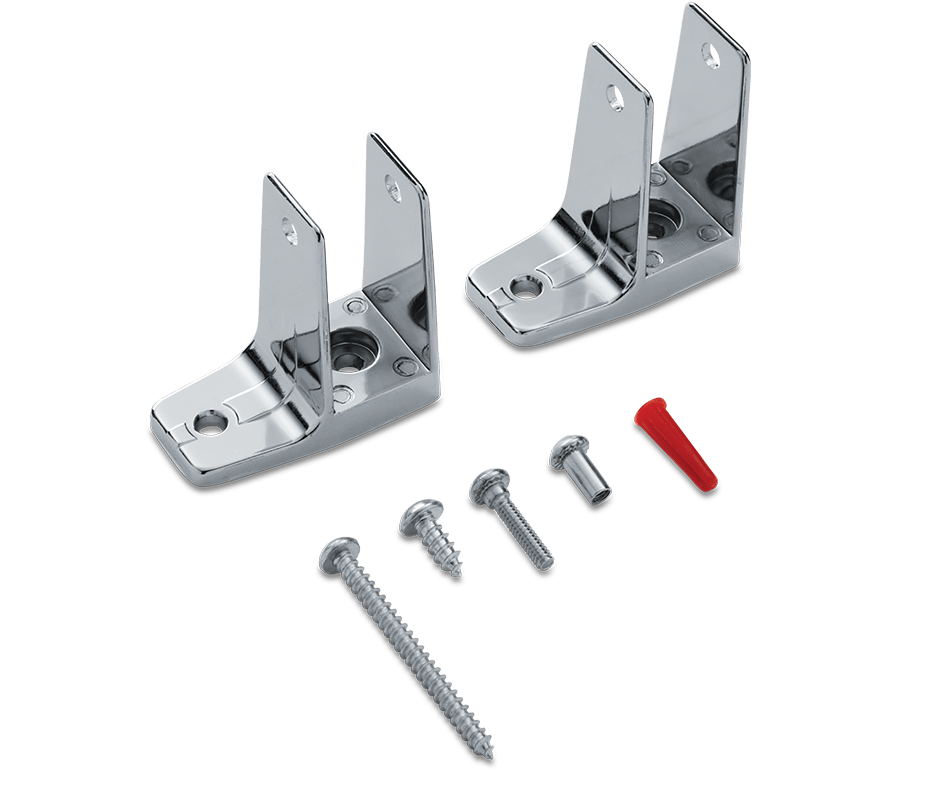

Zamac End Pilaster to Wall Bracket Kit for Powder Coated, Stainless Steel and Plastic Laminate

Qty Description
(2) Zamac brackets one ear
(4) Screws #14 x 2.5"
(4) Plastic shields 14/16 x 1-1/2"
(2) Step bolts 1-1/4"
(2) Barrel nuts #10 x 5/8"
(8) Screws #14 x 5/8"

Metal Part #40-8515220
Plastic Laminate Part #40-8515210

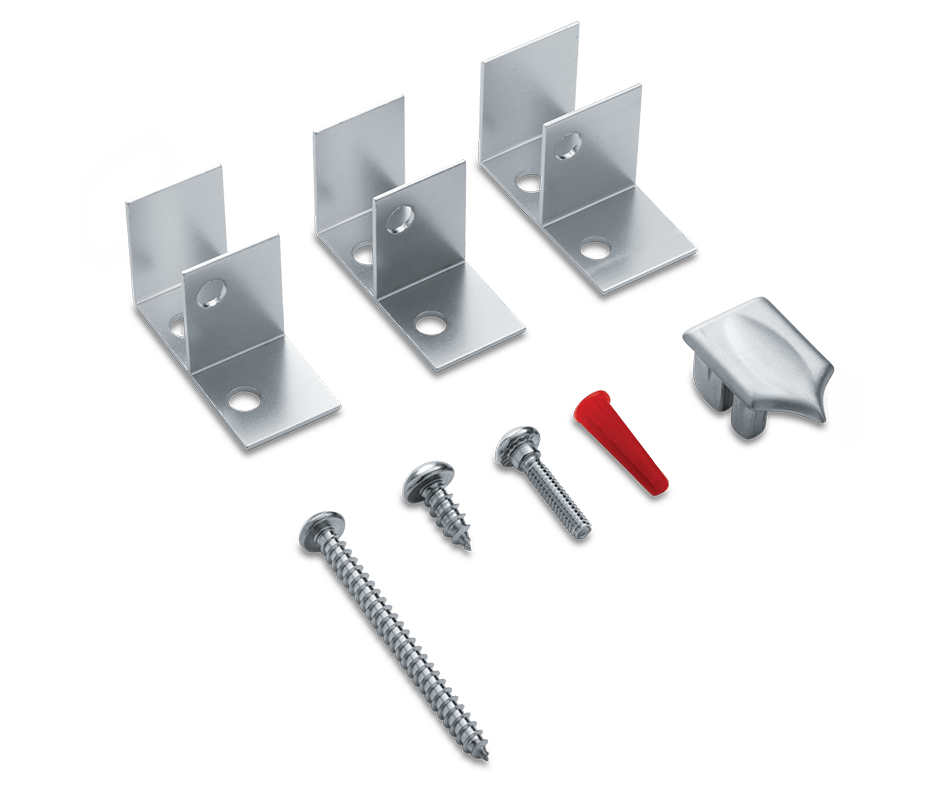

Aluminum End Pilaster to Wall Bracket Kit for Polymer Solid Plastic

Qty Description
(3) Aluminum brackets one ear
(6) Screws #14 x 2.5"
(6) Plastic shields 14/16 x 1-1/2"
(3) Step bolts #10 - 24 x 1"
(3) Barrel nuts #10 - 24 x 5/8"
(8) Screws #14 x 3/4"

Part #40-8445210

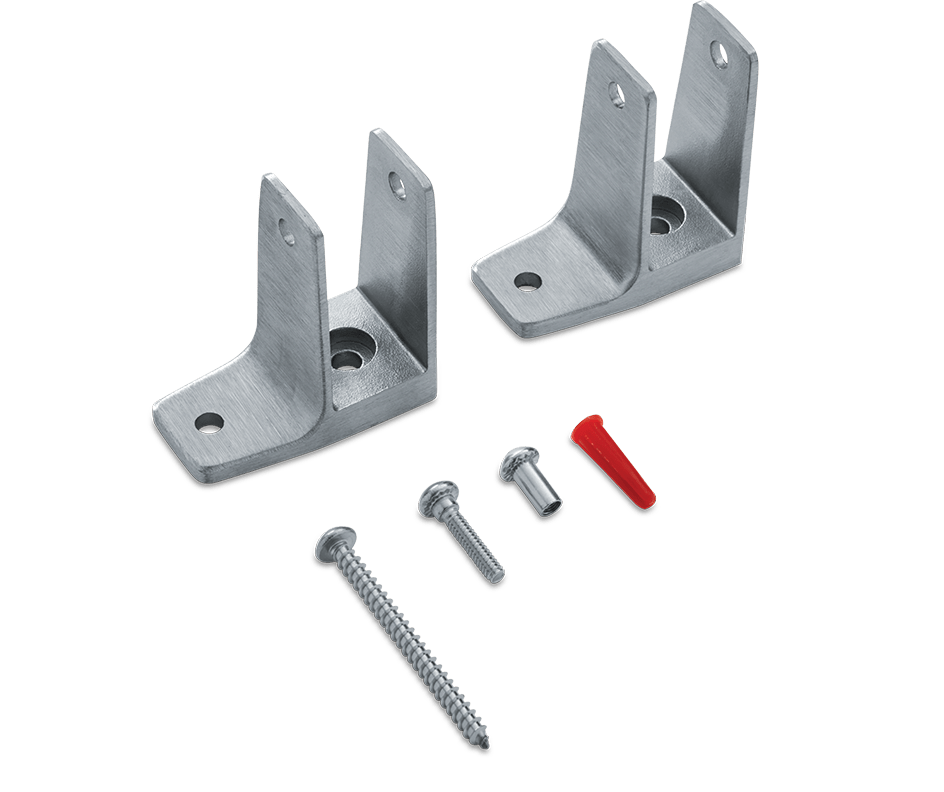

Stainless Steel End Pilaster to Wall Bracket Kit for Phenolic

Qty Description
(2) Stainless steel brackets one ear
(4) Screws #14 x 2.5"
(4) Plastic shields 14/16 x 1-1/2"
(2) Step bolts 3/4"
(2) Barrel nuts #10 - 24 x 1/2"

Part #40-8275210

Floor Anchored Overhead Braced Powder Coated and Stainless Steel Pilaster Mounting Kit

Qty Description
(2) Shoe clip
(2) Floor mount metal clip
(2) Plastic shield
(2) Screw #14 x 5/8"
(2) Screw #14 x 1 3/4"

Part #40-8189002G

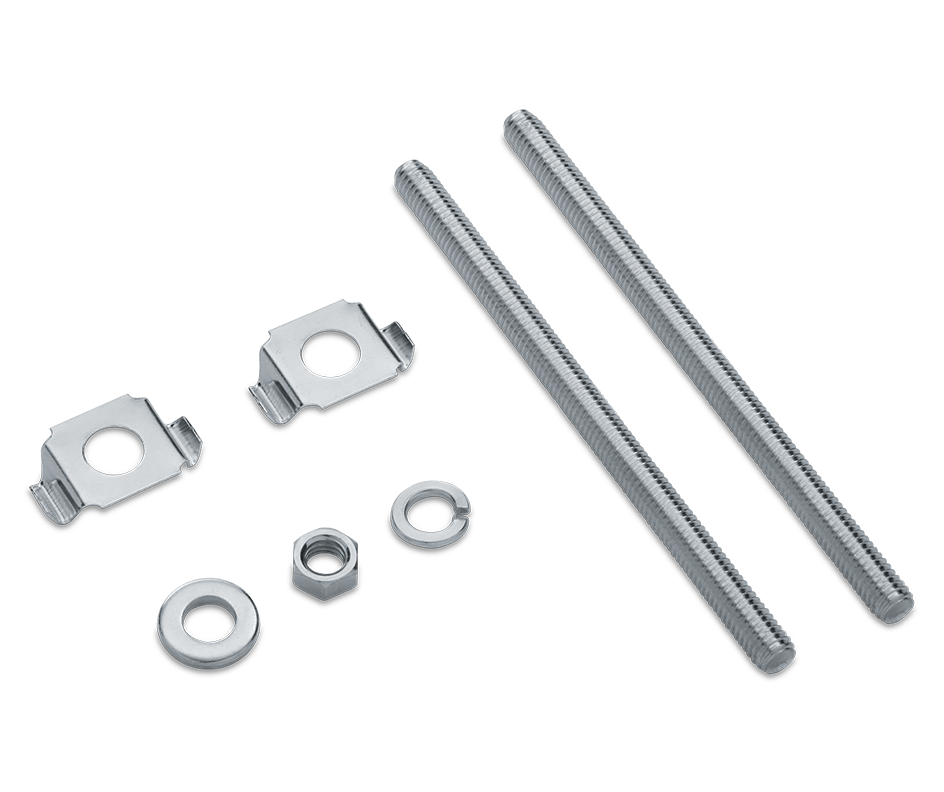

Ceiling Bolt Kit All Products


Qty Description
(2) Studs 6"
(2) Washers 13/16 dia x 1/8 round
(2) Lock washers 3/8"
(4) Nuts 3/8" - 6

Part #40-8988221G

Urinal Screens

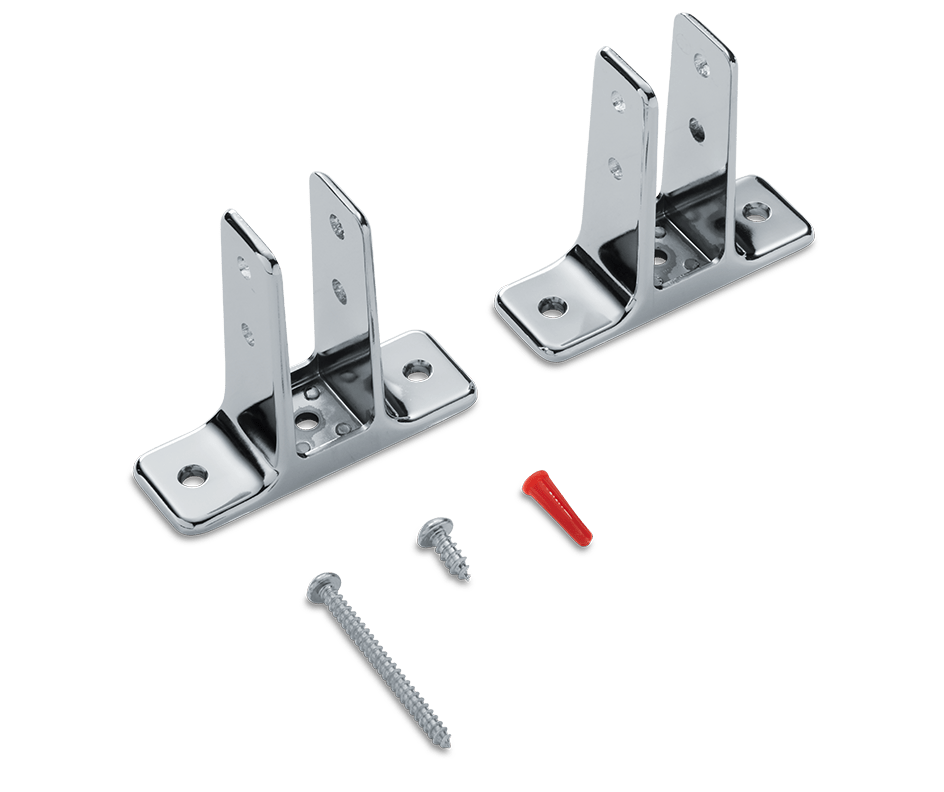

Zamac Urinal Screen Bracket Kit for Powder Coated, Stainless Steel and Plastic Laminate

Qty Description
(2) Zamac brackets two ear
(4) Screws #14 x 2.5"
(4) Plastic shields 14/16 x 1-1/2"
(8) Screws #14 x 5/8" long

Part #40-8511281

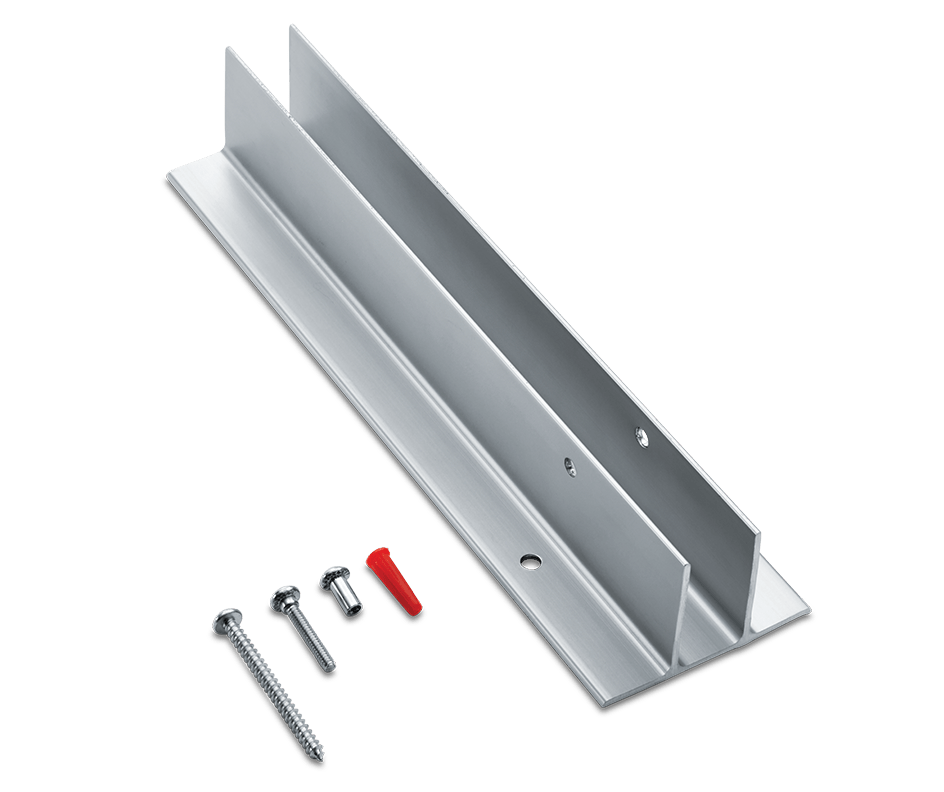

Aluminum Full Height Urinal Screen Bracket Kit for Powder Coated, Stainless Steel, Plastic Laminate and Polymer Solid Plastic

Qty Description
(1) Aluminum bracket 38" long two ear
(8) Screws #14 x 2.5"
(8) Plastic shields 14/16 x 1-1/2"
(4) Step bolts #10 - 24 x 1"
(4) Barrel nuts #10 - 24 x 5/8"

Part #40-8449000

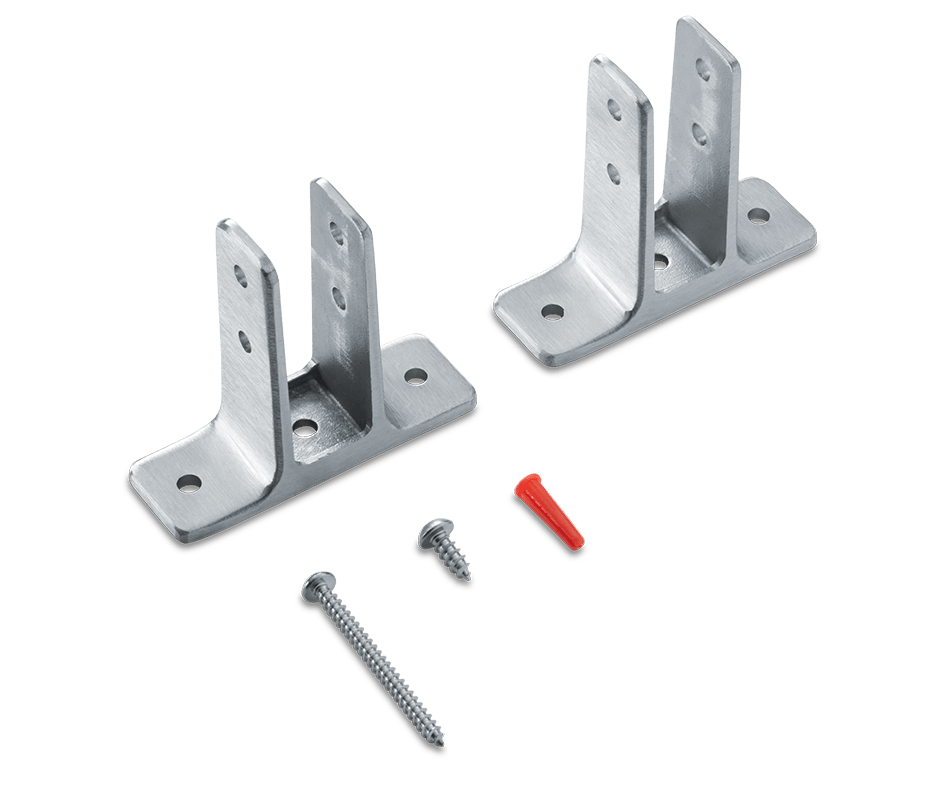

Stainless Steel Urinal Screen Bracket Kit for Phenolic

Qty Description
(4) Stainless steel angle brackets
(4) Screws #14 x 2.5"
(4) Plastic shields 14/16 x 1-1/2"
(4) Step bolts 1/2"
(4) Barrel nuts #10 - 24 x 5/8"

Part #40-8271480

Headrails, Showers & Miscellaneous Items

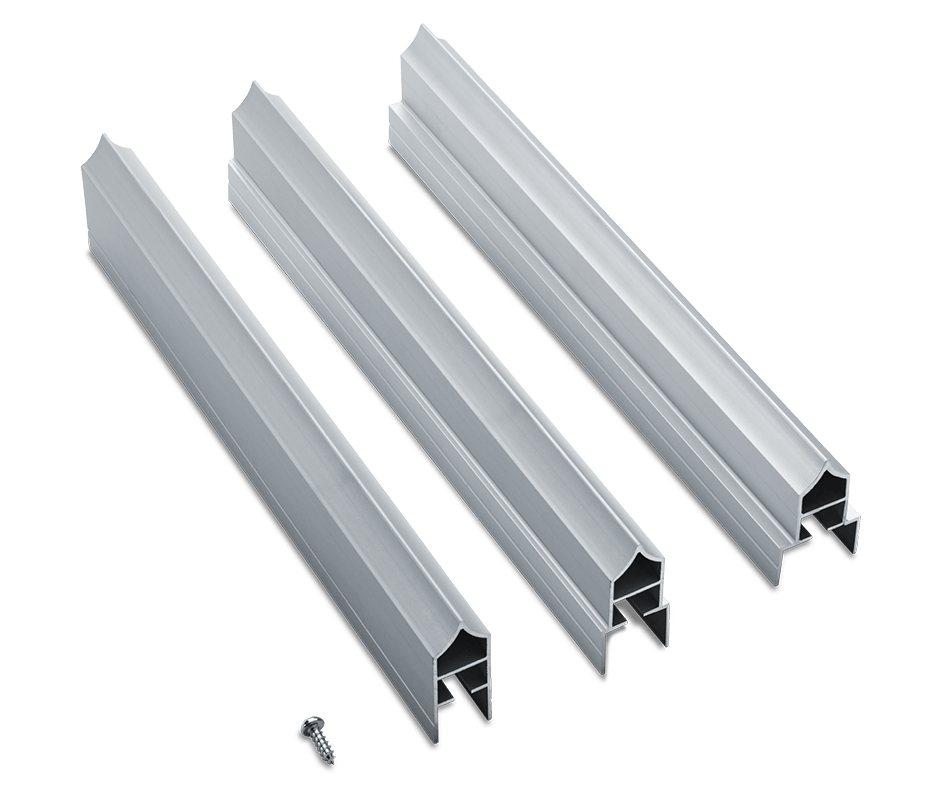

Zamac Anti-grip Anodized Aluminum

Width varies by product type:

  • 3/4" for phenolic
  • 1" for polymer
  • 1-1/4" for powder coated, stainless steel and plastic laminate
  • Lengths of 65" and 98" available for all product types.

Part #Headrail

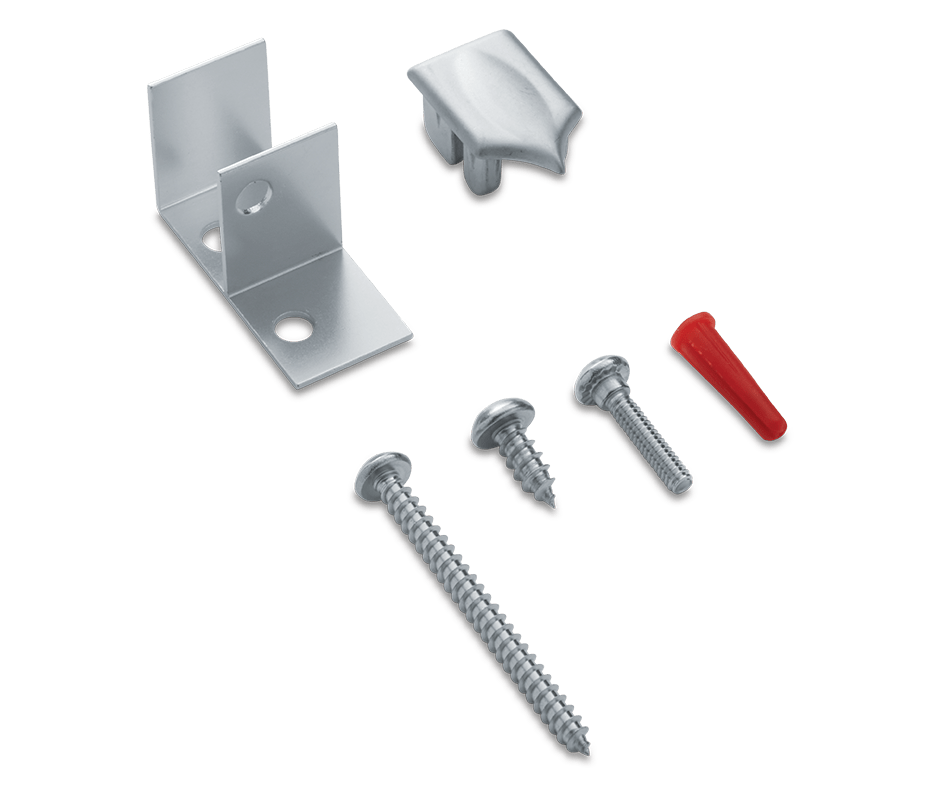

Headrail Return Kit All Products

Qty Description
(1) Satin "F" Bracket
(2) Screws #14 x 2.5" long
(2) Plastic shields 14/16 x 1-1/2"
(4) Screws #14 x 5/8"
(2) Headrail cap

Part #40-8448100

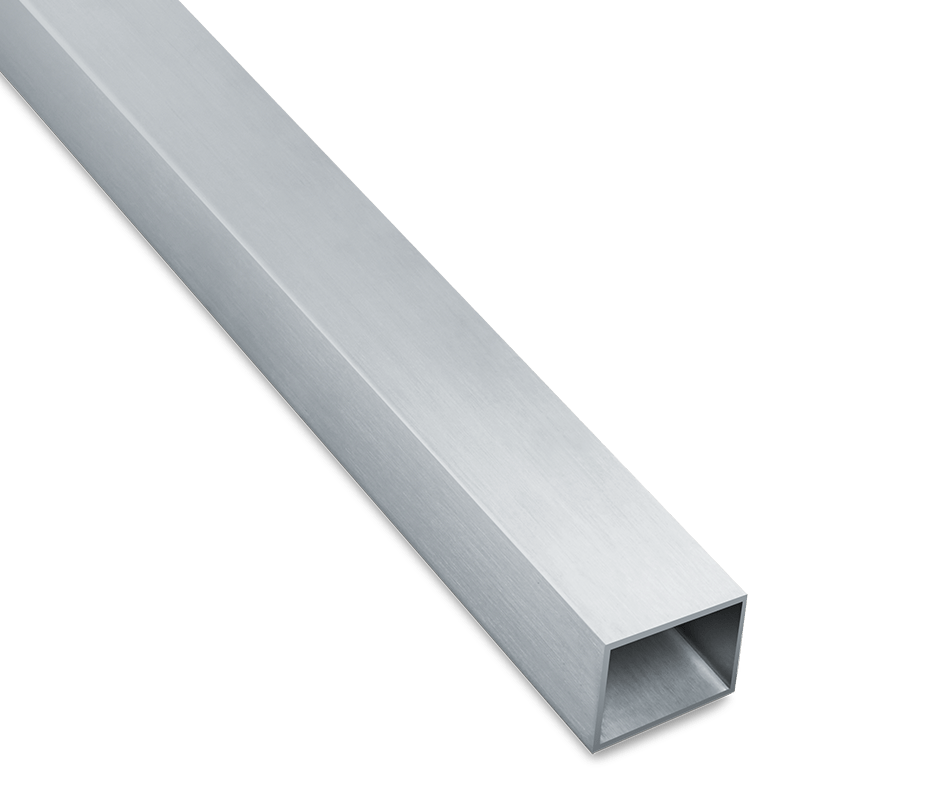

Aluminum Post

  • 1-3/4" square x 10 feet

Part #40-544340

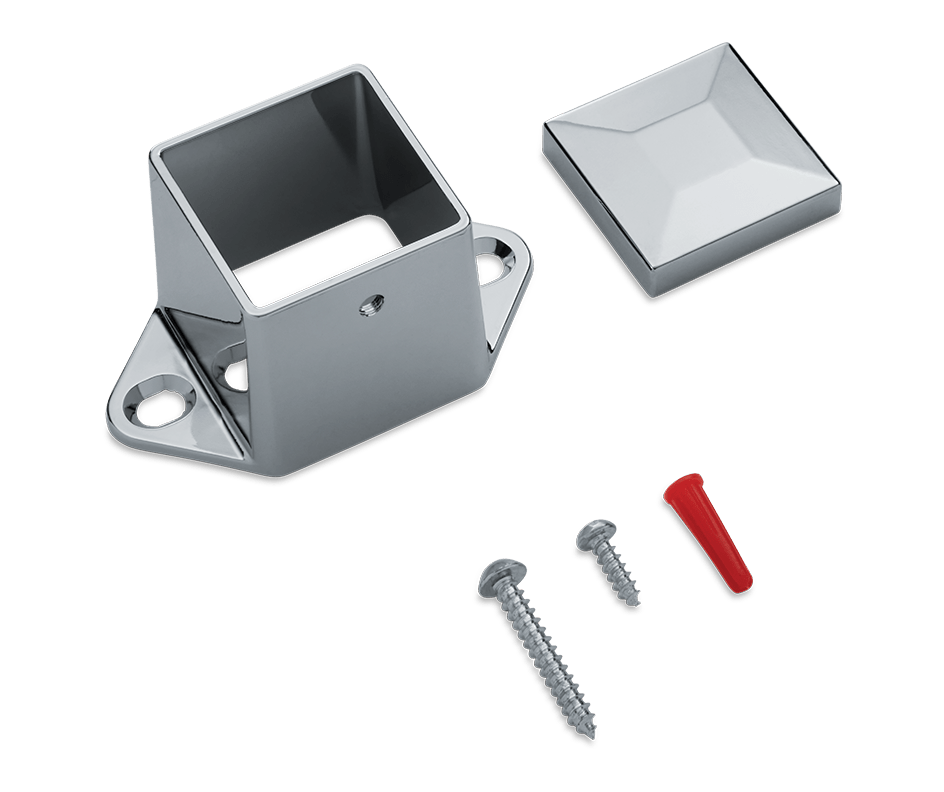

Aluminum Post Mounting Kit

Qty Description
(1) Post cap
(1) Post shoe
(2) Plastic shields 14/16 x 1-1/2"
(2) Screws #14 x 1-3/4"
(1) Screw #10 x 5/8"

Part #40-8442510

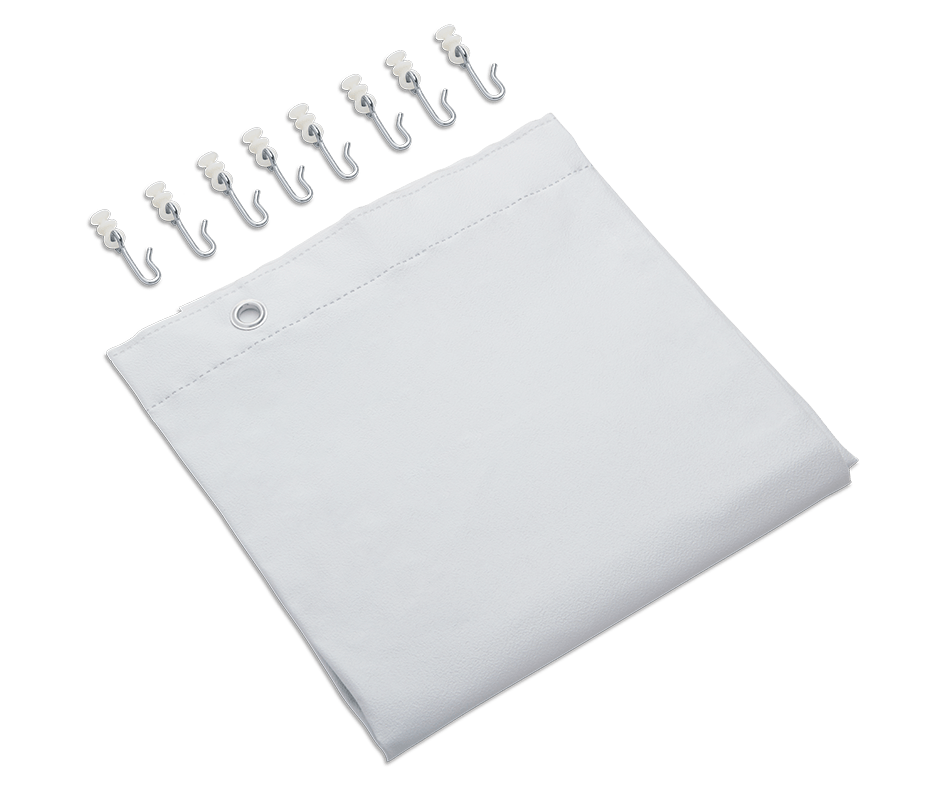

Shower Curtain Set 36"

Qty Description
(1) Vinyl shower curtain 36 x 76
(1) Set of shower curtain hooks

Part #40-8981360
